| Specifications for 80t Grove Telescopic crane AT 990 | |
| Max. capacity: 80 t at 3 m | Max. loadmoment: – tm |
| Axles: 4 | Total weight: 48 t |
| Booms: | |
| Telescopic boom: 12,07-45 m | Boom sections: 5 |
| Boom luffing up to: 81,5° in – seconds | Boom telescoping: 12,07-45 m in – seconds |
| Superlift: – | Intermediate sections: – m |
| Folding jib: 9,68/13,4/17 m offsettable at angle 0/30° | |
| Fixed jib: – m offsettable at angle -° | Luffing jib: – m |
| Main boom foot pin horizontal offset X: -2870 mm |
Main boom foot pin vertical offset Y: – mm |
| Max. slewing speed: 1,6 rpm | |
| Max. line speed: 113 m/min | Max. line pull: 78 kN |
| Dimensions: | |
| Total length: 13600 mm | Tail swing: 4160 mm |
| Carrier length: 11120 mm | Width: 2750 mm |
| Outer turning radius : – mm | Inner turning radius: – mm |
| Turning radius boom head: 13200 mm | Turning radius folding jib: 137500 mm |
| Outrigger base: 8725 x 7200 mm | Reduced outrigger base: 8725 x 4750 mm |
| Crawler track width: – mm | |

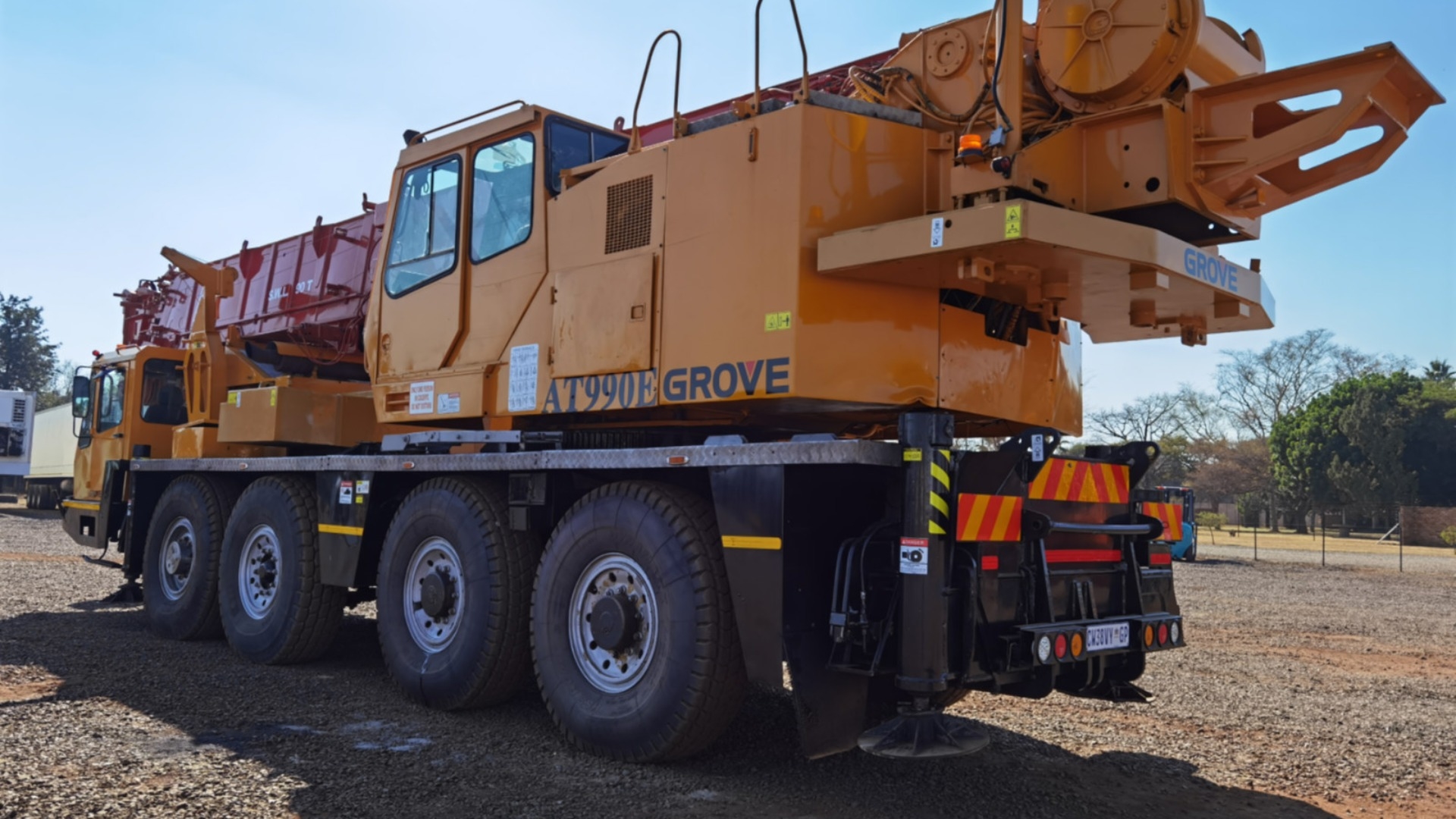

Crane 80 Ton – Grove AT 990
-
R20,900.00
